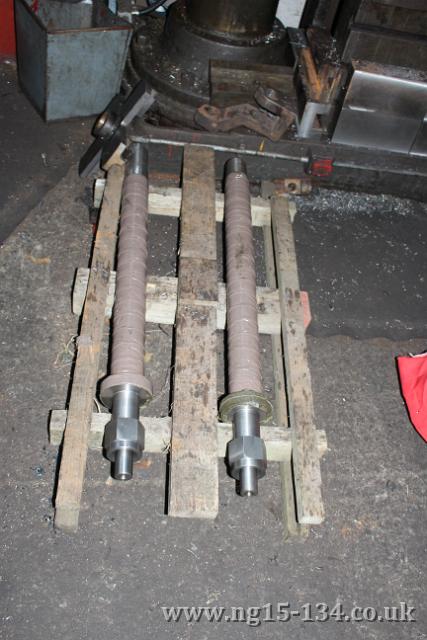

In the workshop we found our two new piston rods having been machined to take the new piston heads.
Photo: Laurence Armstrong
IMG 0911
Image 2 of 7

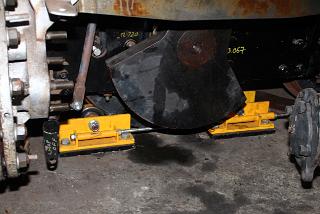

This is the 'rolling road' positioned under the leading driving axle. It will enable us to rotate the wheels to do valve setting.
Photo: Laurence Armstrong
IMG 0914
Image 3 of 7

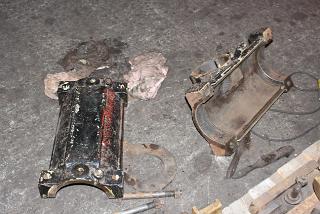

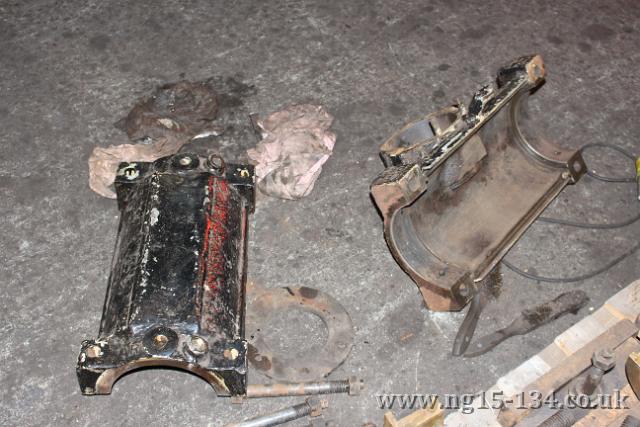

Some of the cannon box components in the process of being checked out and cleaned.
Photo: Laurence Armstrong
IMG 0913
Image 4 of 7

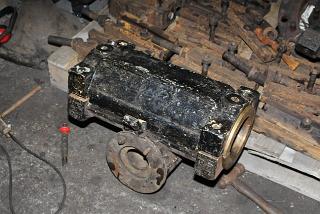

The cannon box being trial fitted together.
Photo: Laurence Armstrong
IMG 0915
Image 5 of 7

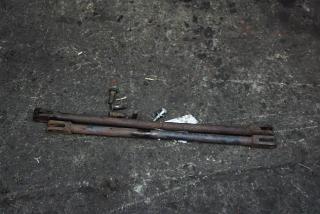

Two of the drain cock linkages. They should be the same length, and neither matched the drawing!
Photo: Laurence Armstrong
IMG 0917
Image 6 of 7

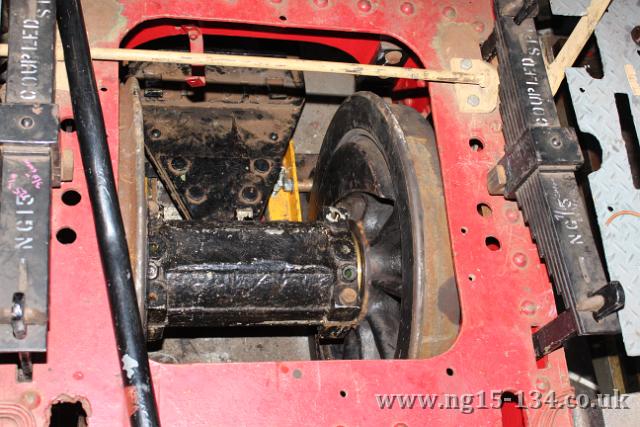

The cannon box in place on the axle with the pony truck's ball joint secured to the bottom of the cannon box.
Photo: Laurence Armstrong
IMG 0918
Image 7 of 7

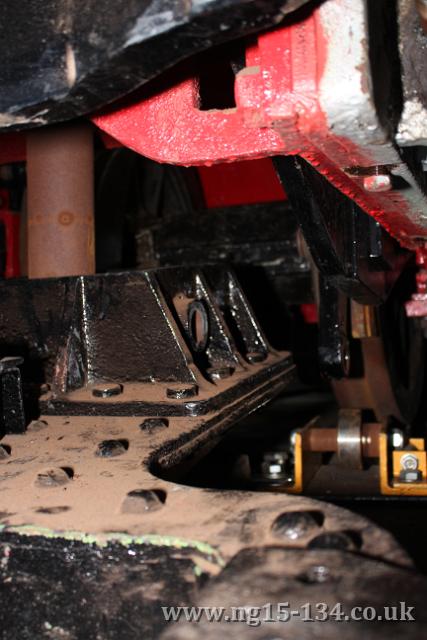

Not the easiest to interpret, however the pin will be where the Krauss-Helmholtz truck pivots. The cannon box can just be made out behind and to the right of the pin.
Photo: Laurence Armstrong
