№134 as we found it at the start of the weekend.
Photo: Laurence Armstrong

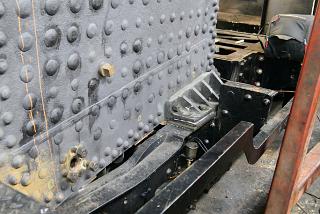

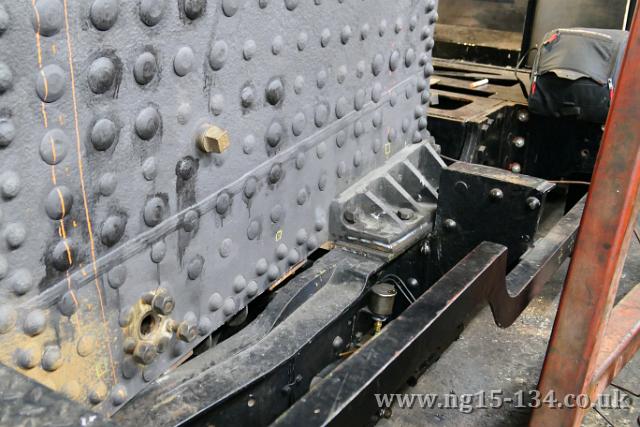

To get the boiler to sit correctly in the frames we needed a thin packing piece under one of the rear supports and this was duly welded into place over the weekend.
Photo: Laurence Armstrong

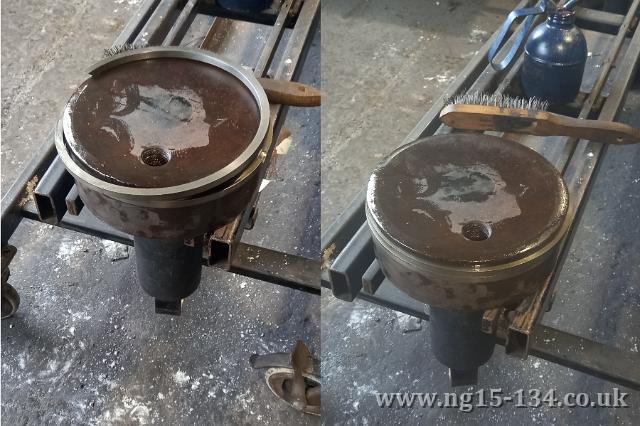

A major component fitted was the loco's steam brake. Here the piston ring is being fitted.
Photos: Erle Ford

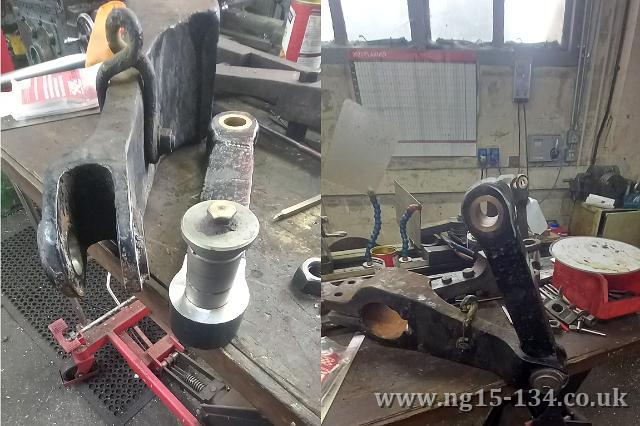

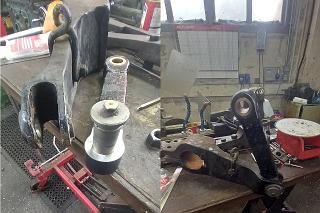

The operating arm for the steam brake also needed attention with a new pin and the piston arm needing thinning slighty to fit into the crank arm.

Photos: Erle Ford

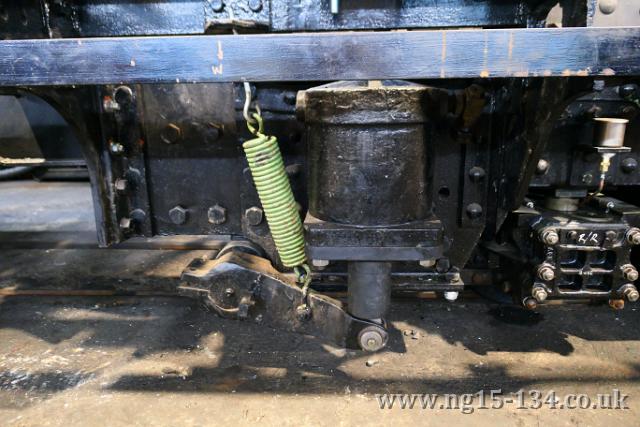

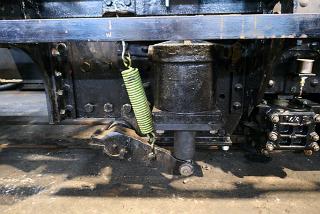

The steam brake now complete.
Photo: Laurence Armstrong

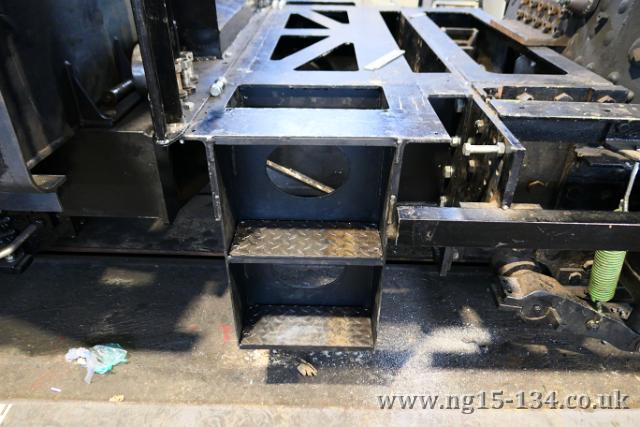

A small job was fitting the chequer plate to the cab steps.
Photo: Laurence Armstrong

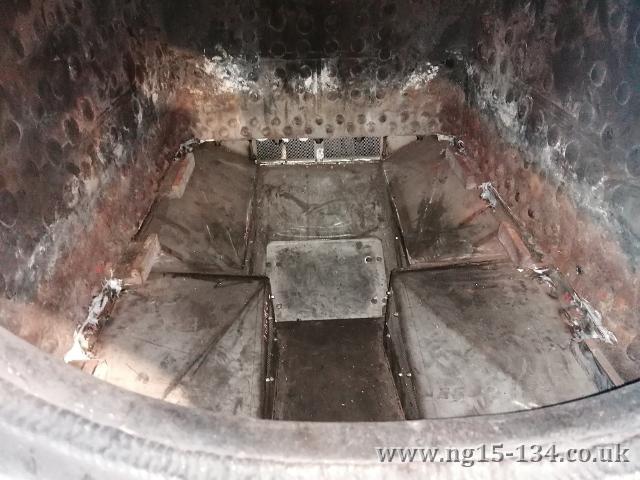

Inside the firebox showing the ashpan.
Photo: Laurence Armstrong

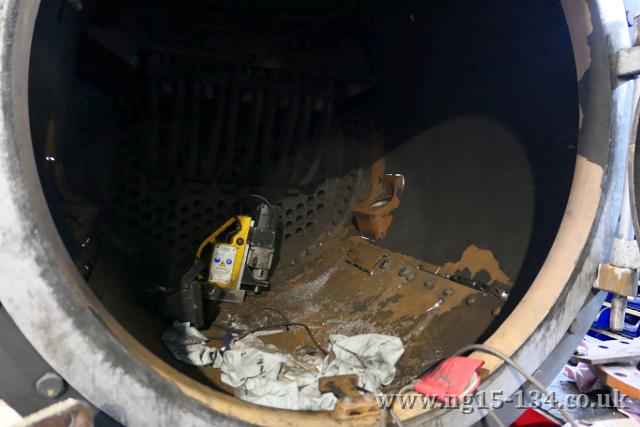

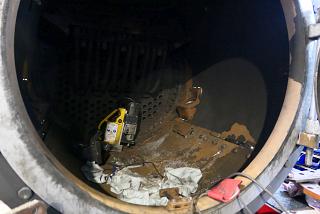

Bolting down the smokebox end of the boiler to the smokebox saddle was a significant job for the weekend. To ensure the correct allignment of the Mag Drill onto the curved surface a small platform needed tacking in place for each hole. This was then removed afterwards.
Photo: Laurence Armstrong

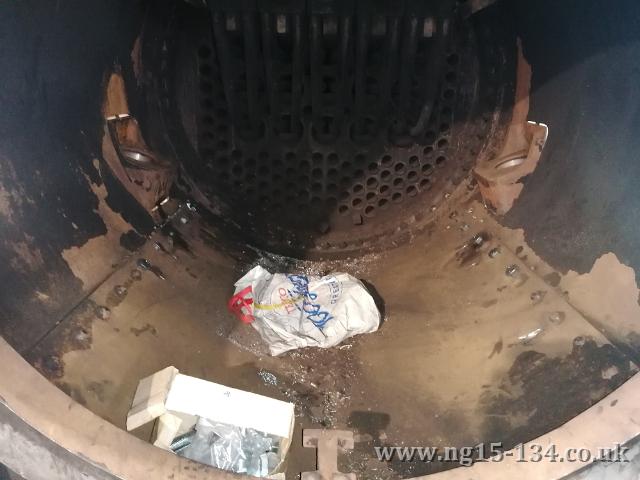

At the end of the weekend four more bolts had been fitted on the loco's left hand side and two on the right.
Photo: Laurence Armstrong

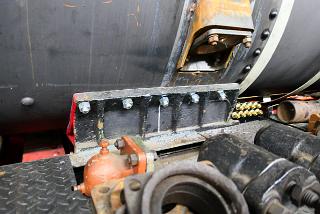

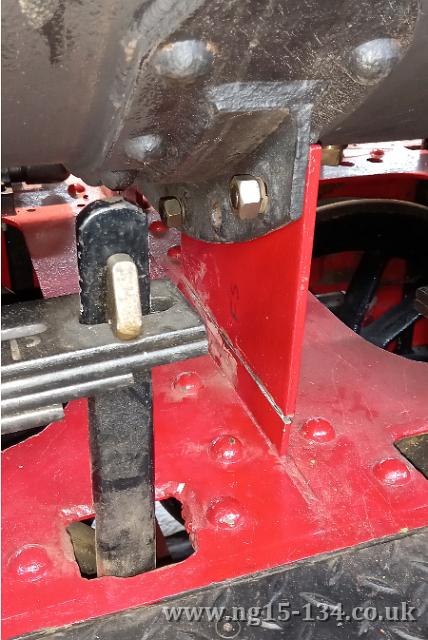

The bolts seen from the outside.
Photo: Laurence Armstrong

The finished boiler crinoline bands and some of the crinoline strips' positions marked out on the firebox.
Photo: Laurence Armstrong

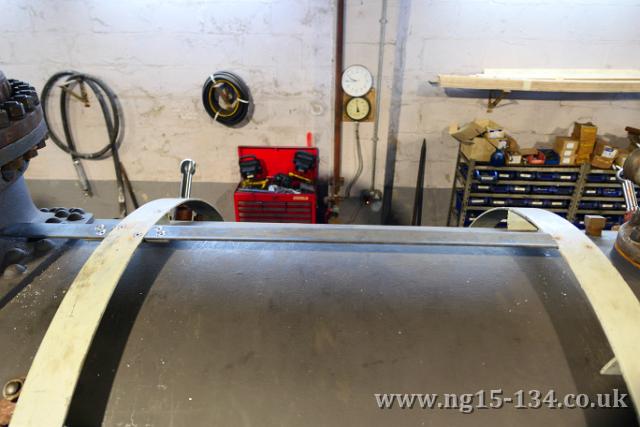

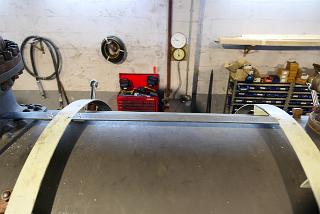

The top crinoline strips where the two boiler cladding sheets will be joined were also started.
Photo: Laurence Armstrong

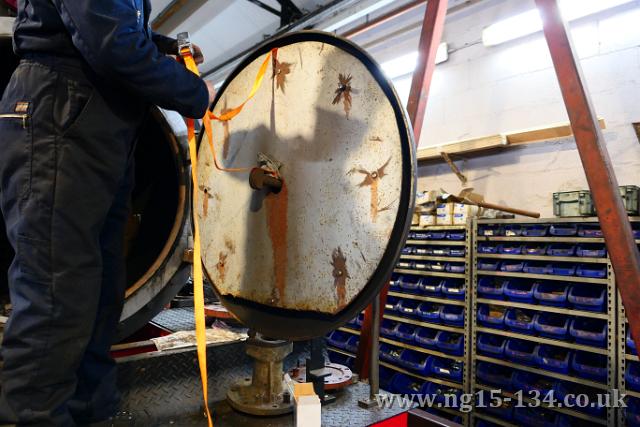

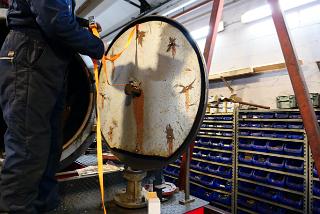

We also started fitting the smokebox door's baffle plate. One to be finished next time.
Photo: Laurence Armstrong

We started re-attaching the boiler's central support diaphragm plate. This needs some fitted bolts making then welding in place. A job to be continued next time.
Photo: Erle Ford

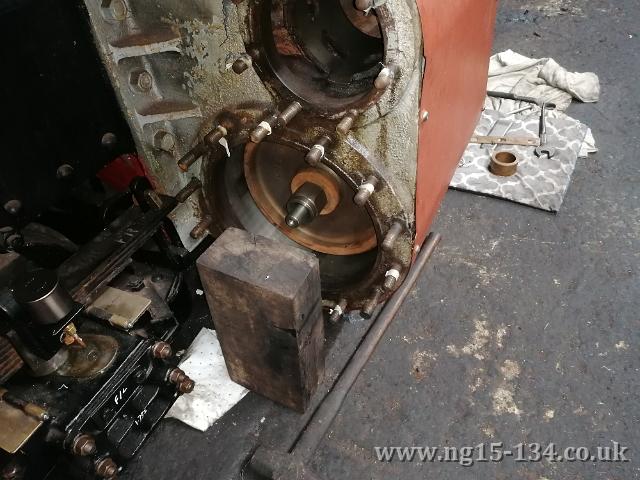

The full time staff are continuing fitting the pistons and rods and associated motion components.
Photo: Laurence Armstrong

The full time staff are continuing fitting the pistons and rods and associated motion components.
Photo: Laurence Armstrong

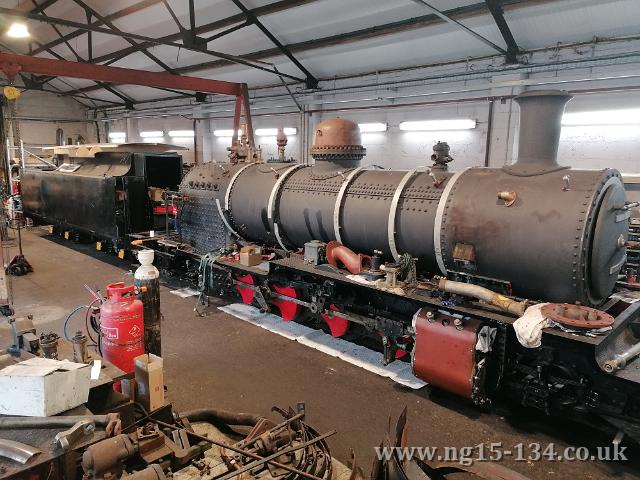

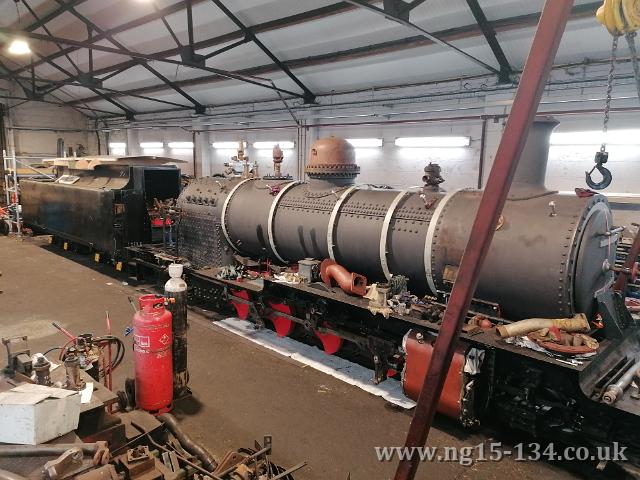

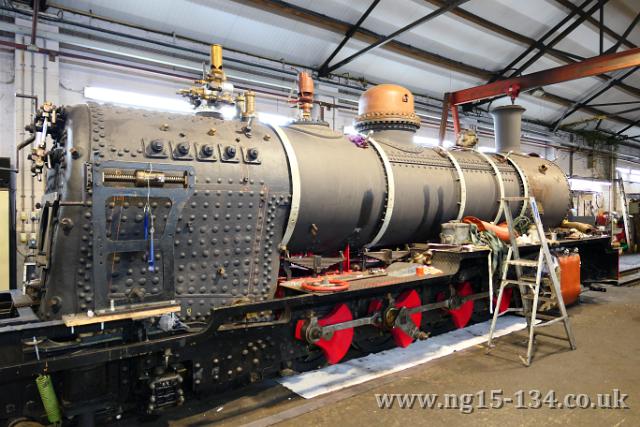

№134 as we left it at the end of the weekend. A few noticeable differences such as the joined up crinoline bands.
Photo: Laurence Armstrong
